The eductors feature precise, adjustable foam concentration settings (OFF, 1/4%, 1/2%, 1%, 3%, 6%)with precision-sized metering orifices, delivering calibrated concentrations within UL-162 toleranceranges for reliable fire suppression efficacy.

Multiple flow rate models (60, 95,125 GPM) are available, catering to diverse firefighting scenariosfrom small-scale urban blazes to large wildland fires.

while a standard 200 psi inlet pressure ensures consistent performance across standard models.

Advantages:
· With flush button
· Supports quick disassembly and maintenance With a free-floating check diskpreventing water

Model	UNZ-60	UNZ-95	UNZ-125
Design Pressure	200psi (14bar)
Flow Rate	60 gpm (225 l/min)	95 gpm (360 I/min)	125 gpm (475l/min)
Inlet	2.5" (65 mm)
Outlet	1.5" (38 mm)
Coupling	Accept customization
Nozzle compatibility	UNN-240	UNN-360	UNN-480

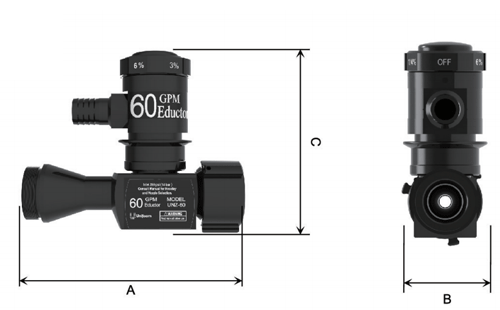

MODEL	UNZ-60 & UNZ-90 & UNZ-125
A (mm)	230
B (mm)	70
C (mm)	170
