Portable low-expansion foam guns are used for connecting mobile fire hoses. Equipped with a water/foam premix, they are suitable for generating low-expansion foam for extinguishing fires involving flammable liquids or solid materials. For even better results, they are used in conjunction with our PHF (UNZ) series proportioning mixers.

Firefighters can automatically shut off the foam gun valve when the water/foam premix is not needed (e.g., during rapid movement), eliminating the need for end-point personnel to manuallyclose the hose valve.

The function is to add air to the foam/water premix to create a low-expansion extinguishing foam with an expansion ratio of approximately 1:7.

Advantages: Equipped with a control valve; long range; high expansion ratio.

Model	PPQ4 (UF240)	PPQ6 (UF360)	PPQ8 (UF480)
Design Pressure	50-100PSI (3.5-7BAR)
Flow Rate (7BAR)	4L/S	6L/S	8L/S
Inlet Size	2"	2"	2"
Range (m)	≥20	≥24	≥28
Body Material	Stainless Steel
Coupling	Accept customization

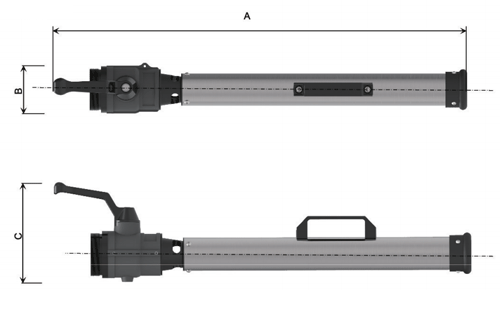

MODEL	PPQ4 (UF240)	PPQ6 (UF360)	PPQ8 (UF480)
A (mm)	975
B (mm)	80
C (mm)	179
