A proportioner precisely dispenses foam concentrate into the water flow at mixing ratios (commonly1%, 3%, and 6%), with a wide flow range.

A proportioner, in conjunction with a foam concentrate storage tank and foam discharge device,forms a complete foam fire extinguishing system.

Using a flange connection, the proportioner must be installed with the arrow pointing in the direction of water flow. It can be installed vertically or horizontally, but a straight pipe at least five times the pipe diameter should be installed laterally to help ensure proportioning accuracy.

Advantages: Wide mixing ratio range; precise mixing ratio; multiple mixing ratios available.

Model	PHQ-3 (UFC-3)	PHQ-4 (UFC-4)
Design Pressure	87-232PSI (6-16BAR)
Flow Rate	4-48L/S	4-78L/S
Body Flanged	3"	4"
Foam Inlet Threaded	1.5"	2"
Orifice	Brass
Body & Nozzle	Cast Brass
Connection	Flanged
Snap Ring	Stainless Steel

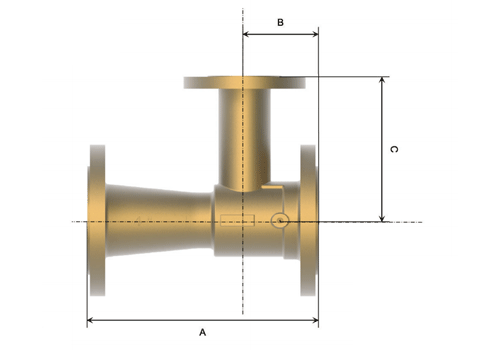

MODEL	PHQ-3 (UFC-3)	PHQ-4 (UFC-4)
A (mm)	235	279
B (mm)	75.5	84
C (mm)	158.5	191.5
